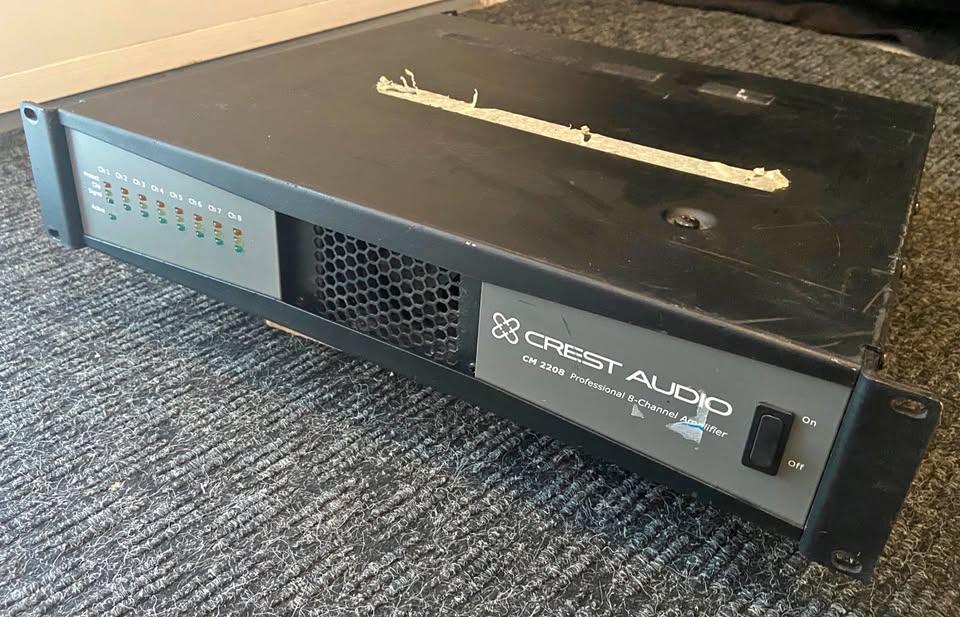

Crest Audio CM 2208 Professional 8-Channel Amplifier
$200
Equipment was recently pulled from a working system in a restaurant. It is being sold “as is” but should be in good working condition.
Model: CM 2208
Output Power 4 Ohms: 150W x 8
Output Power 8 Ohms: 220W x 8
Output Power 70V: 20W x 8
Frequency response (1W into 8 Ohms ): 1KHz, <0.02% THD+N, one channel driven, non-bridged operation - 5Hz to 20kHz, +/- 1dB
THD+N: <0.02% at rated power (@ 70V, 1kHz)
Damping factor: 200:1 into 8 Ohms
Input CMRR: >60dB @ 1KHz
Input sensitivity @ 70V: 0.775V for full rated output power (0.775V gain selected); .75V for full rated power (x40 gain selected)
Input impedance: 20Kohms balanced, 10Kohms unbalanced
Hum and noise: -97dB, A-weighted
Crosstalk: < -60dB below max rated power (1KHz)
Power supply: linear transformer
Circuit breaker rating (120V/230V): 12A / 6A
Current draw (120VAC), 1/8 power, 70V: 4.0A
Current draw (120VAC), 1/3 power, 70V: 8.0A
Current draw (120VAC), at idle: <2A
Thermal emissions 1/3 power, 70V: 947 btu/hr
Cooling: front to side via single DC fan
Input connectors: balanced three pin Phoenix
Output connectors: two pin Phoenix

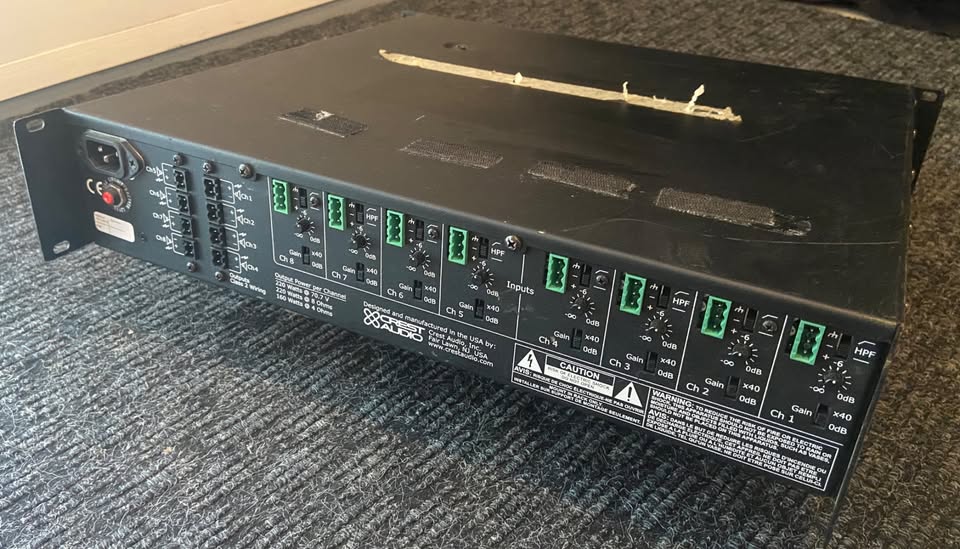

Controls: front panel: power switch; rear panel: stepped attenuators, HPF select, gain select, circuit breaker
LED indicators: signal, clip, protect
Construction: 16-gauge steel chassis with 16+12-gauge rack-ears
Dimensions (W x H x D): 19" x 3.5" x 16.69" (483 mm x 89 mm x 424 mm)
Weight: 36.5 lbs. (17 kg)
Manual:
https://www.manualslib.com/products/Crest-Audio-Cm-2208-301770.html
