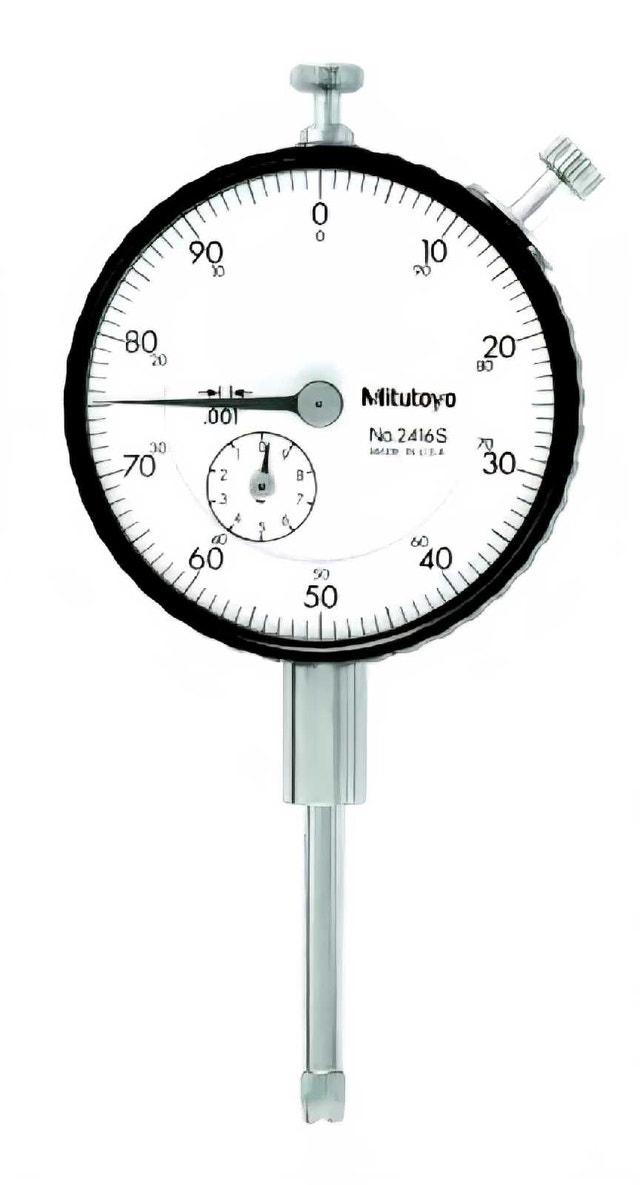

Mitutoyo 2416A-10 Series 2" Dial Indicator, lug back 1", 0.001"

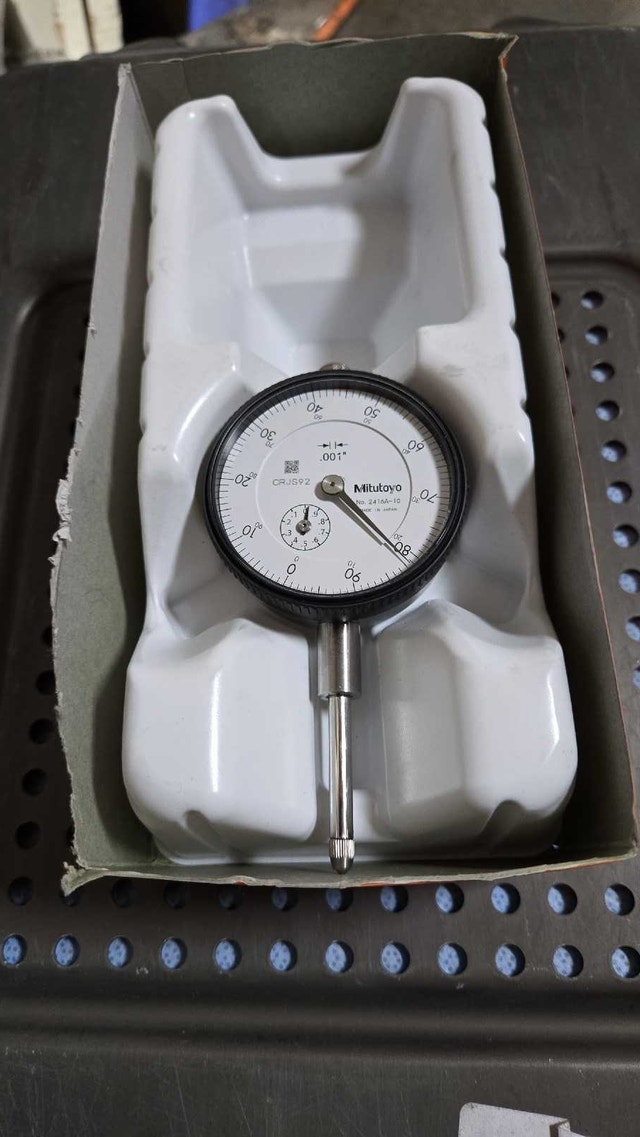

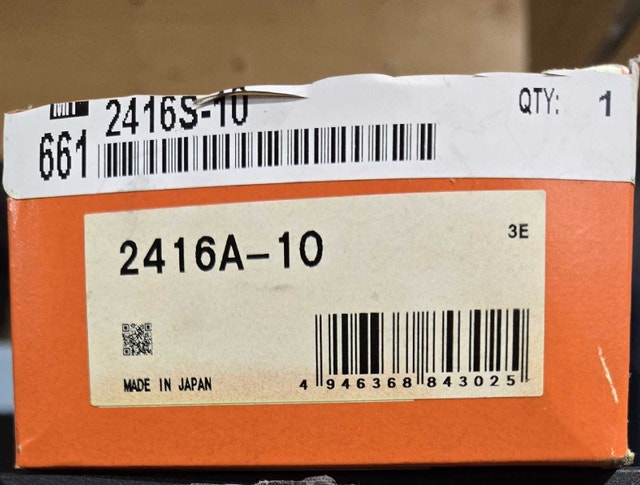

This depth guage has had no use. It came to me by way of an overstock liquidation sale. There is no damage to the guage, however the top to its package is missing. Retail value on this in Canada is about $200. It is a current product made in Japan. Accordingvto the manufacturer: Performs with simplicity, excellent accuracy and reliability. This inch standard-type dial indicator with lug back and jeweled bearing features a 1" maximum range with 0.001" graduations. It features a unique shock-proof mechanism that protects against shock from sudden spindle retraction. * Offered with lug back for mounting purposes * Revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range * Unique shock-proof mechanism protects against shock from sudden spindle retraction * Secured adhesion between the frame and crystal, along with the use of an O-ring, protects the indicator against water and oil permeation via the front face * Rack gear is machine ground for tighter fit, increased accuracy * Greater rigidity in the bearing plate reduces retracing error by up to 20% * 4 Screw mounts increases impact resistance for better, longer accuracy * No through screw hole on the frame provides better dust resistance * Contact point is carbide tipped for lasting accuracy, durability * Crystal is glare-free with a scratch-resistant coating * Manufactured to meet ANSI/AGD standards * No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration * The jeweled bearing provides wear resistance and low friction movements for smooth, precise operations Applications Aerospace Automotive Defense Electronics Energy General manufacturing Plastics and rubber
