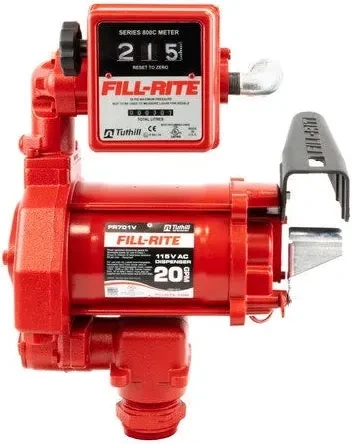

Fill-Rite PR701V 115V AC 20 GPM Fuel Dispenser with Meter

This is a Fill-Rite PR701V fuel dispenser. It's a 115V AC model with a 20 GPM rating. The Series 8000 meter is included for tracking total litres. It's designed for measuring liquid flow.Fuel Transfer Pump Maximum Flow Rate 20 GPM Maximum Head 53 ft Maximum Pressure 23 PSI (max discharge pressure) Pump Type Fuel Transfer Pump Pump Mechanism Rotary vane Application Use Fuel Transfer Included Components Meter Intended Use Fuel Transfer Recommended Application Installing onto stationary aboveground tanks, Filling large equipment with fuel tanks sized at 20- 80 gallons Use Environment Job site, Field Electrical Voltage 115V AC Electrical Amperage 5.5 A Material Type Cast-iron Housing Material Cast-iron Top Use Cases Fuel Transfer Suitable Environment Out in the field, At the job site Power Horsepower .33 hp Power Source AC, Mechnical Power Voltage 115V Power Wattage 632 Power Amperage 5.5 A Capacity Volume 20- 80 gallons (fuel tanks) Compatible With Diesel Control Method Manual (nozzle) Dimensions Size 3/4 in Dimensions Depth 11.9 in Dimensions Diameter 3/4 in (hose) Dimensions Height 12 in Dimensions Length 11.9 in Dimensions Width 14.2 in Outer Diameter 3/4 in (hose) Connection Size 3/4 in Inlet Size 1.25 in Installation Type Installing onto stationary aboveground tanks Outlet Size 0.75 in Thread Type NPT (outlet), NPT (inlet), NPT (mounting) Safety Features Thermal protection switch, Thermal protection switch, Thermally-protected motor prevents overheating Mounting Type Bung Mount Design Highlights Heavy-duty Max Pumping Depth 15 ft (suction lift) Runtime 30 min on / 30 min off (duty cycle) Motor Speed 1,725 rpm Performance Run Time 30 min on / 30 min off (duty cycle) Included Accessories Meter Key Technologies Self-priming Special Functions Filters out particulates in your fuel Unique Selling Points Built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
