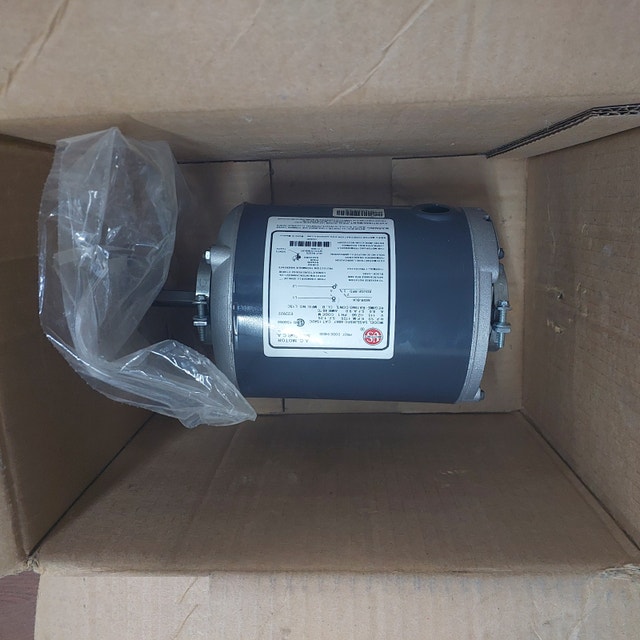

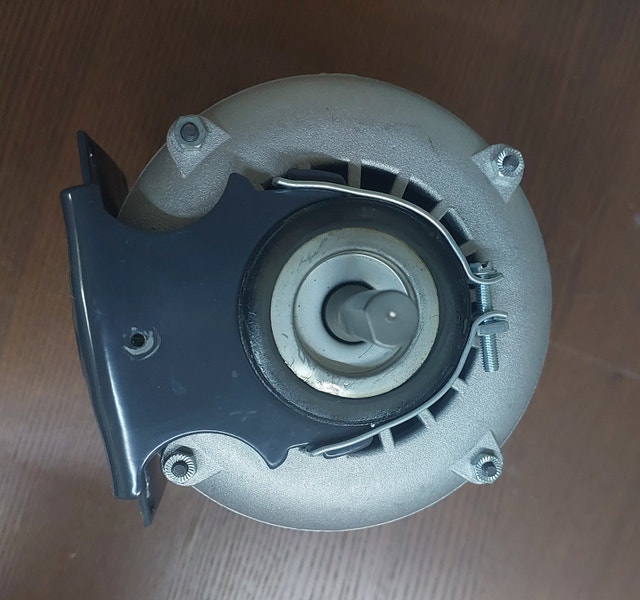

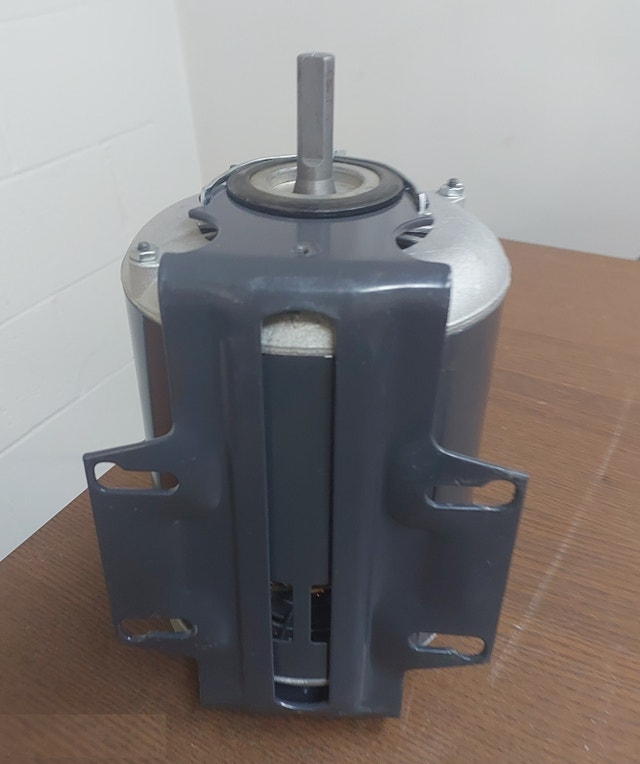

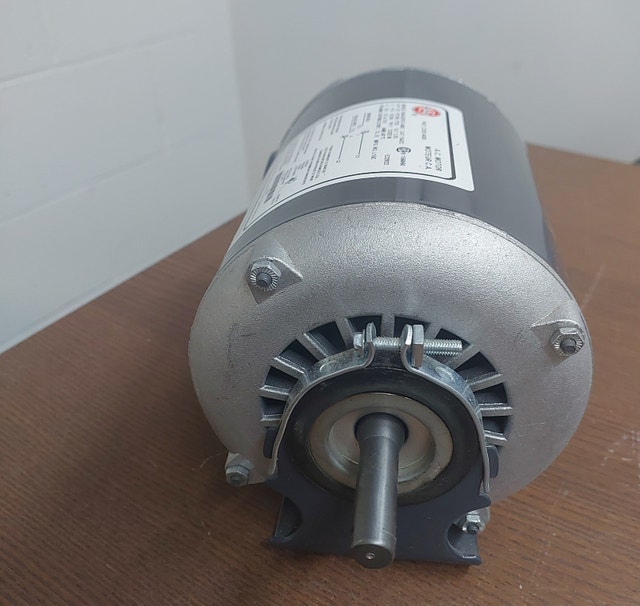

NIDEC A.C. Motor – Model SA55JXSFC-4867 - M099

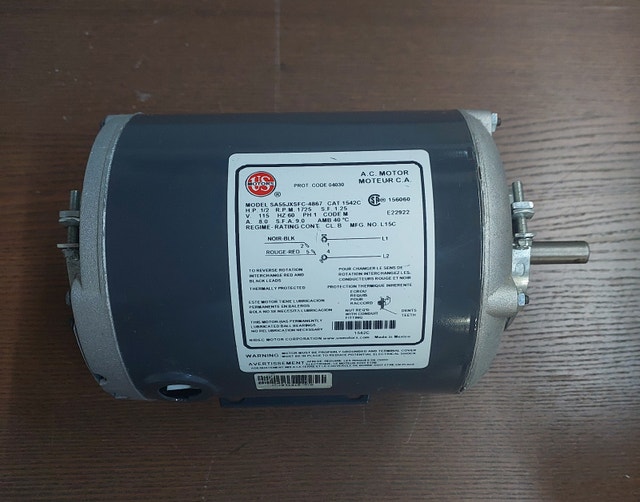

NIDEC A.C. Motor – Model SA55JXSFC-4867 (Cat. 1542C) Condition: Used – professionally removed, tested, and working. Great for replacement or repair. Key Specifications: • Manufacturer: NIDEC Motor Corporation (U.S. Motors) • Model Number: SA55JXSFC-4867 • Catalog Number: 1542C • Horsepower: 1/2 HP • Speed: 1725 RPM • Voltage: 115 V • Amperage: 8.0 A • Service Factor Amps (S.F.A.): 9.0 A • Frequency: 60 Hz • Phase: Single-phase (PH 1) • Service Factor (S.F.): 1.25 • Code: M • Insulation Class: B • Ambient Temperature: 40°C • Thermal Protection: Yes (Thermally Protected) • Rotation Direction: Reversible by switching red and black leads • Frame: Not explicitly listed (likely standard 48 frame) • Protection Code: 04030 • Country of Origin: Made in Mexico • Manufacturing Number: L15C • Lubrication: Permanently lubricated ball bearings (no maintenance required) Common Replacements / Cross References: Direct drive applications in fans, pumps, and general A/C equipment. Match with CAT 1542C or Model SA55JXSFC-4867 for compatibility. Typical Applications: Residential and commercial HVAC blower motors, air handler systems, small compressors, and belt-driven fans.
