Gas Valve Specifications – White-Rodgers 36E Series - GCV 106

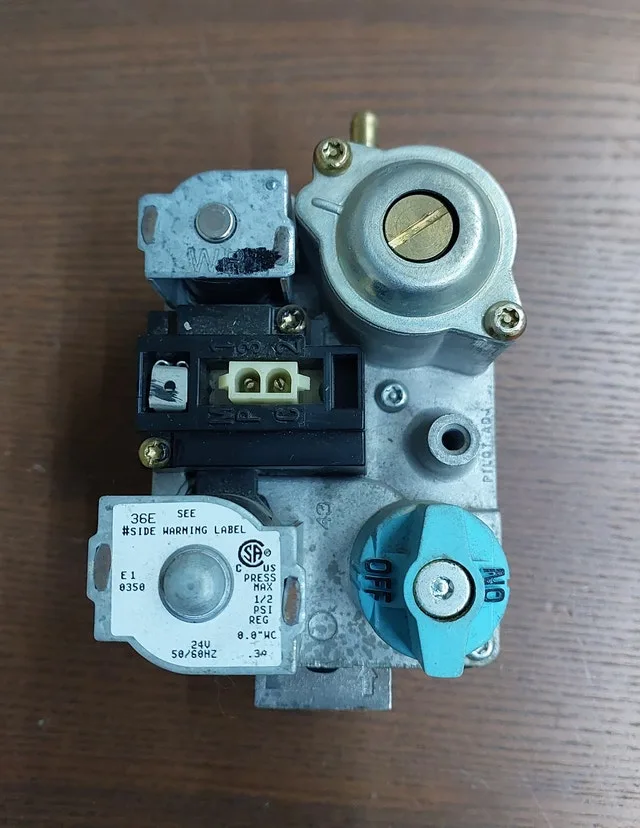

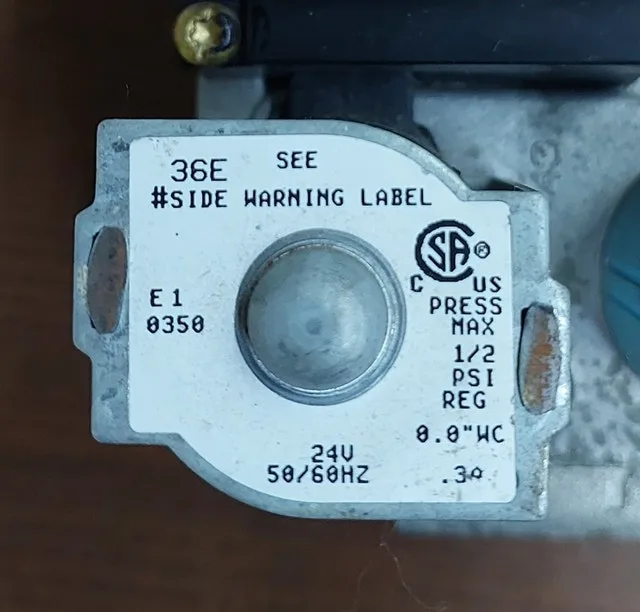

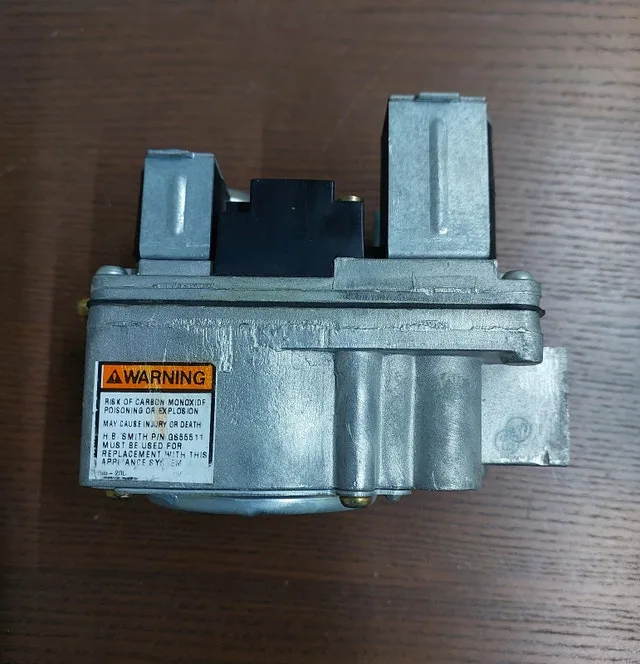

Gas Valve Specifications – White-Rodgers 36E Series Condition: Used – Cleaned and Fully Functional Series: 36E Manufacturer: White-Rodgers (Emerson) Valve Type: Combination Gas Control Valve – Direct Ignition Stage: Single-Stage (based on regulator marking) Regulator Output Pressure: • 3.5" WC (“0350” marking = 3.5" WC factory setting) Electrical Rating: 24V AC, 50/60 Hz Current Rating: 0.34 A Maximum Inlet Pressure: 1/2 PSI Label / Internal Markings: • E1 • Code: 0350 • US • Side Warning Label indicates exact full model number (required for exact replacement) The complete number is required to confirm: • Pipe size & orientation • Single vs two-stage • OEM compatibility • Exact replacement match Common 36E Series Replacements: • 36E22 Series • 36E24 Series • 36E54 Series (if two-stage version) (Exact match must be confirmed from side label.) Common Applications: • Residential gas furnaces • Single-stage forced-air heating systems • HVAC systems requiring 24V gas control valve Condition: Used - Like new For Sale By: Owner Curbside pick up: Yes
