Ignition Control Module Specifications – Fenwal 35-655006-011

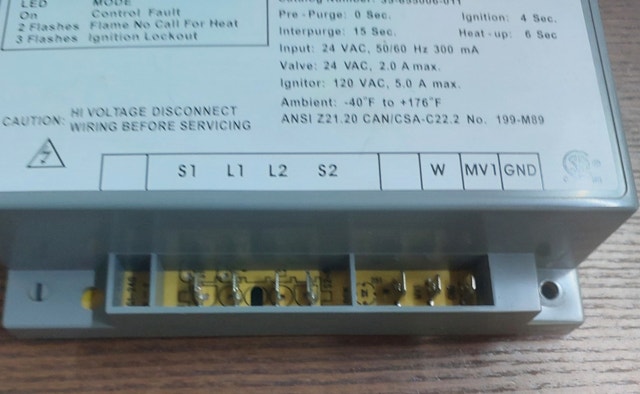

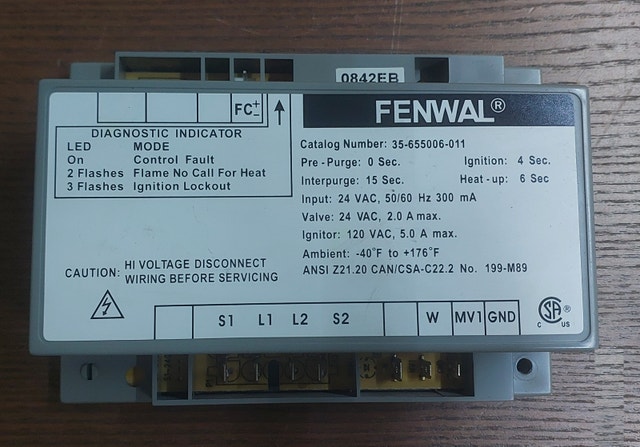

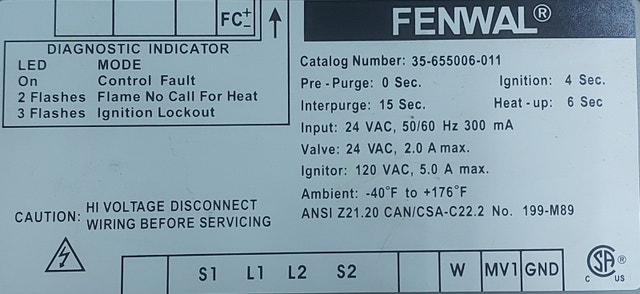

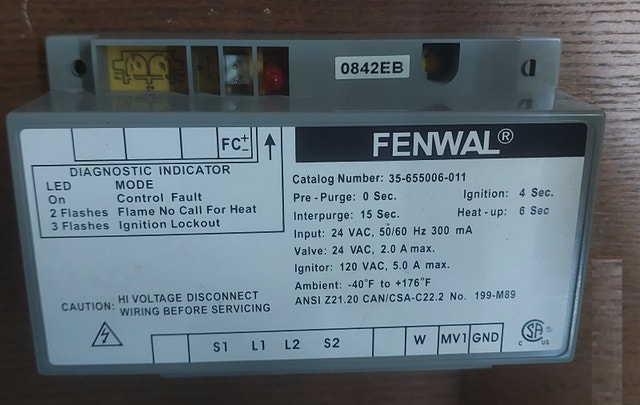

Ignition Control Module Specifications – Fenwal 35-655006-011 Model / Catalog Number: 35-655006-011 Manufacturer / Brand: Fenwal® Type: Ignition Control Module (Direct Spark Ignition) Certifications: ANSI Z21.20, CAN/CSA-C22.2 No.199-M89 Key Specifications: Input Power: 24 VAC, 50/60 Hz, 300 mA Ignitor Rating: 120 VAC, 5.0 A max Gas Valve Rating: 24 VAC, 2.0 A max Pre-Purge: 0 seconds Inter-Purge: 15 seconds Ignition Trial: 4 seconds Heat-Up Time: 6 seconds Ambient Temperature Range: -40°F to +176°F (-40°C to +80°C) Diagnostic LED Indicator Codes: 3 Flashes: Ignition Lockout 2 Flashes: Flame sensed, no call for heat Solid On: Control Fault Compatible Replacement Models: Fenwal 35-6550 Series Ignition Controls Some White-Rodgers / Honeywell OEM boards (spec verification required) Common Applications: Residential and commercial furnaces with Direct Spark Ignition Boilers and unit heaters HVAC systems requiring electronic ignition safety control Condition: Used - Like new For Sale By: Owner Curbside pick up: Yes
